熱交換器のためのSA213 A213の合金鋼の継ぎ目が無い管T11 T22 T23 T5 T9 T91
Product Details
| 製品名: | 合金鋼の継ぎ目が無い管 | 適用: | ボイラー、過熱装置、熱交換器 |
|---|---|---|---|
| 等級: | T1、T11、T12のT2、T22、T23、T5、T9、T91、T92 | 標準: | ASTM A213/SMES SA213 |
| ハイライト |
継ぎ目が無い合金鋼の管,ニッケル合金の管 |
||
Product Description

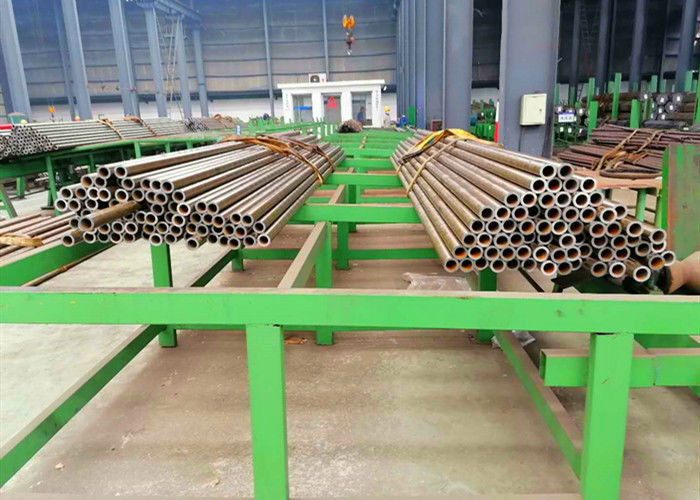

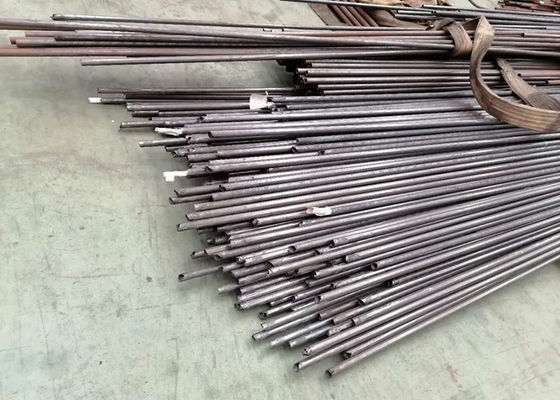

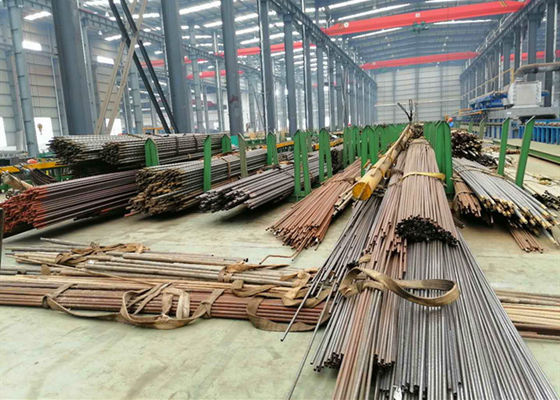

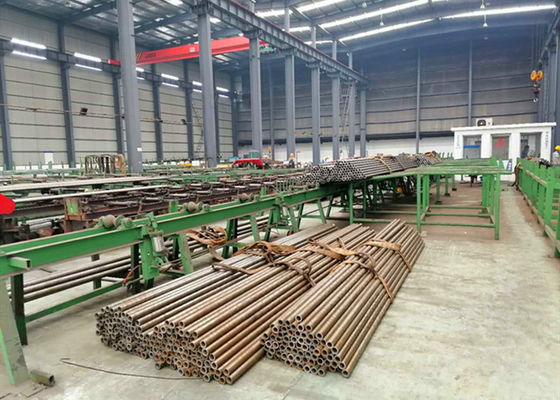

SA213/A213合金鋼の継ぎ目が無い管T11 T22 T23 T5 T9 T91の熱交換器の管
ボイラー、過熱装置、熱交換器の塗布のためのASTM A213/ASME SA213 T9 T91 T92の合金鋼の継ぎ目が無い管
HDTの供給はCr Mo合金の継ぎ目が無い管および管の巨大なqty、および35ヶ国以上輸出します。私達の合金の継ぎ目が無い管はボイラーおよび暖房で使用される幅です。
| カーボン | Chromiun | 低温 | ステンレス鋼 | 二重 | Copper&の青銅 | チタニウム | NI合金 | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 MT 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 MT 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 MT 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| 熱交換器のための管のサイズ及びコンデンサー及びボイラー | |||||||||
| 外径 | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| 壁厚さmm | |||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | インチ | 重量kg/m | |||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
ASTM A213/ASME SA213のT2、T11、T12、T22、T91、T92化学成分および機械特性
| 等級 | 化学薬品Composition% | ||||||||
| C | Si | Mn | P、最高S | Cr | Mo | 最高NI | V | 最高Al | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0.025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0.025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | 最高の0.5 | 0.30~0.61 | 0.025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | 最高の0.5 | 0.30~0.60 | 0.025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0.02 | 8.0~9.5 | 0.85~1.05 | 0.4 | 0.18~0.25 | 0.015 |
| T92 | 0.07~0.13 | 最高の0.5 | 0.30~0.60 | 0.02 | 8.5~9.5 | 0.30~0.60 | 0.4 | 0.15~0.25 | 0.015 |
| 等級 | 化学薬品Composition% | 機械特性 | |||||||
| W | B | Nb | N | T.S | Y.P | 延長 | 硬度 | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW （85HRB） | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW （85HRB） | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW （85HRB） | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW （85HRB） | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW （25HRB） | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW （25HRB） | |
ASTM A213/ASME SA213のT2、T11、T12、T22、T91のT92許容
| 外径 | ODの許容 | 重量の許容 | Ovalityの許容 | 長さの許容を切って下さい |
| OD≤ 12、7つのmm | ± 0、13のmm | ± 15% | – | + 3、18のmm、– 0 mm |
| 12、7つのmm < OD=""> | ± 0、13のmm | ± 10% | 、1、65のmm最高 | + 3、18のmm、– 0 mm |
| 38、1つのmm < OD=""> | ± 0、25のmm | ± 10% | 、2、41のmm最高 | + 4、76のmm、– 0 mm |
- 発電、石油および他の高温サービスのためのT11合金鋼の管
- 発電、石油および他の高温サービスのためのT22合金鋼の管
- 石油のためのT5合金鋼の管
- 石油のためのT9合金鋼の管
- 発電のためのT91合金鋼の管
- 発電のためのT92合金鋼の管
- ボイラー取り替えおよび修理のためのT1合金鋼の管
- 製造のボイラーのためのSA209 T1の管
- 過熱装置のためのASTM A213/ASME SA213 T5の合金鋼の管
- 熱交換器のためのASTM A213/ASME SA213 T5の合金鋼の管
