Product Details
| 標準: | API/CE/ISO /TUV | 製品名: | 熱交換器のための炭素鋼の管のボイラー管 |
|---|---|---|---|
| 適用: | 産業ボイラー | 表面処理: | 塗られるニスを乾燥して下さい |
| ハイライト |

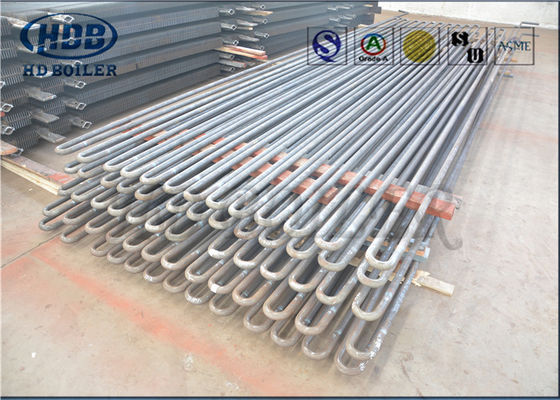

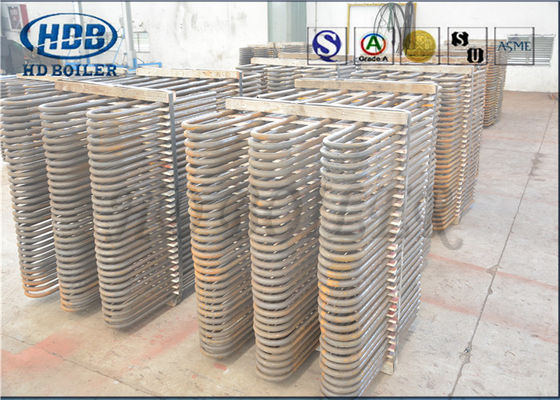

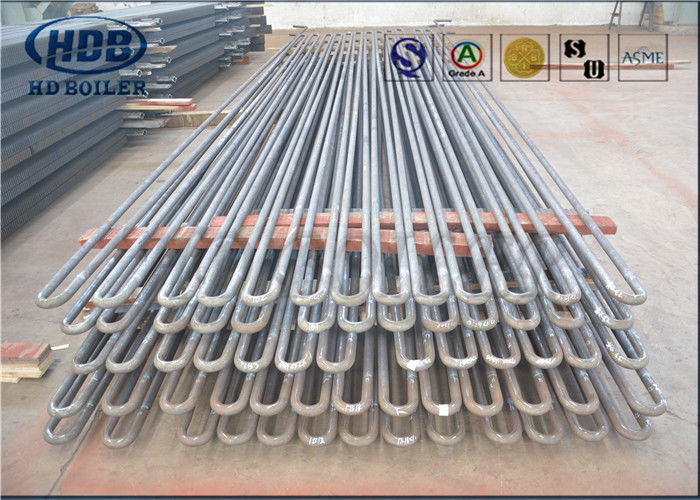

冷たい-引き分け水壁の管,冷たい-引き分けの低炭素のU字型チューブ |
||
Product Description
冷たい-熱交換器およびコンデンサーの管のための引き分けの低炭素鋼鉄継ぎ目が無いボイラー管
冷たいASTM A179/（ASME SA179） -熱交換器およびコンデンサーの管のための引き分けの低炭素鋼鉄継ぎ目が無い管
ASTM A179/（ASME SA179）
| 継ぎ目が無い冷たい- Conderserの引き分けの低炭素鋼鉄熱交換器および管 | |
| 適用 | 管状の熱交換器、コンデンサーおよび同じような熱伝達の器具のため。 |
| サイズ（mm） | O.D.:6.0~114.0 W.T.:1~15のL:最高の12000 |
等級および化学成分（%）
| 化学成分 | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
O.D.およびW.T. （SA-450/SA-450M）の許容
| ODの（mm） | + | - | 重量の（mm） | + | - |
| <1> | 0.10 | 0.10 | ≤1.1/2 （38.1） | 20% | 0 |
| 1~1.1/2 （25.4~38.1） | 0.15 | 0.15 | >1.1/2 （38.1） | 22% | 0 |
| >1.1/2~<2> | 0.20 | 0.20 | |||
| 2~<2> | 0.25 | 0.25 | |||
| 2.1/2~<3> | 0.30 | 0.30 | |||
| 3~4 （76.2~101.6） | 0.38 | 0.38 | |||
| >4~7.1/2 （101.6~190.5） | 0.38 | 0.64 | |||
| >7.1/2~9 （190.5~228.6） | 0.38 | 1.14 |
Product Highlights
冷たい-熱交換器およびコンデンサーの管のための引き分けの低炭素鋼鉄継ぎ目が無いボイラー管 冷たいASTM A179/（ASME SA179） -熱交換器およびコンデンサーの管のための引き分けの低炭素鋼鉄継ぎ目が無い管 冷たい家プロダクト鋼鉄PIPE/TUBE ASTM A179/（ASME SA179） -熱交換器およびコンデンサーの管のための引き分けの低炭素鋼鉄継ぎ目が無い管 メッセージを送りなさい 冷たいASTM A179/（ASME SA179） -熱交換器およびコンデンサーの管のための引き分けの低炭素鋼鉄継ぎ目が無い管 ASTM A179/（ASME SA179） 継ぎ目が無い冷たい- ...
