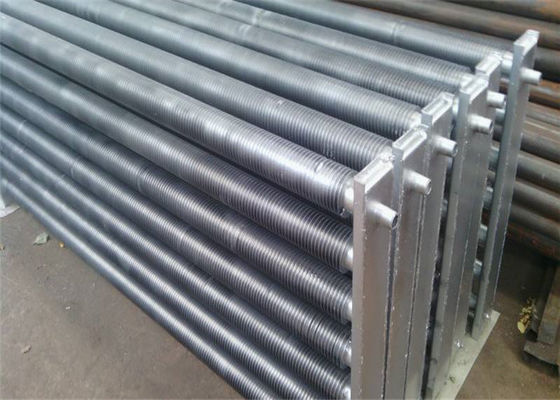

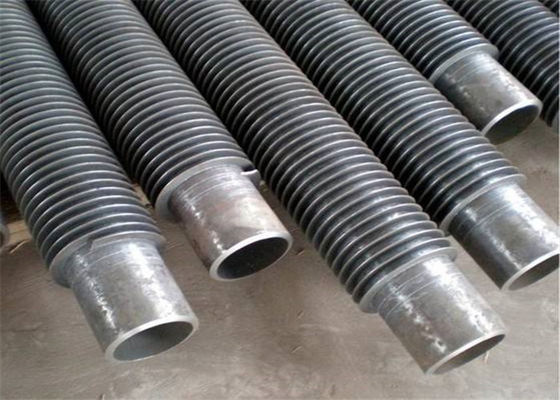

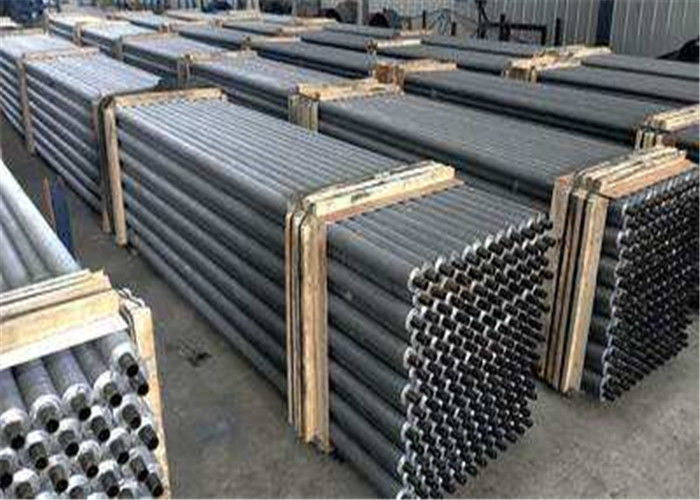

Welded Longitudinal TP304L TP 316L Stainless Boiler Fin Tube, Steam Boiler Fin Tube

Product Introduction

BaseTube material:

Stainless steel(SA213 304)

Dimension:

OD:16-140mm WT:2-10mm Length:1-25m

Fin material:

SA213-TP304H,Copper and so on

Fin type:

KL,L,LL,H ,spiral slot,low,Stud pipes-Visual, type

seamless copper stainless steel fin tube

Dimension:

Thickness of fin :0.5-4.0mm Height of fin:5-30mm Fin pitch :3.5-40mm

Make the craft:

steel tube polishing-tooth punching on steel strip-Solid rolling on steel trip-High frequency welding-Hydrostatic pressure test, chamfering, polishing-Quality inspection -Packaging

Produce method:extruded & serrated

Application:

air cooler, fired heater, heat exchanger, marine boiler, economizer, power plant boiler, HRSG boiler, waste heat recovery unit, air heater etc

Characteristic:1.Anti-corrosion2.Anti-wear3.Lower contact resistance 4.Higher Stability

Specifications

1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
