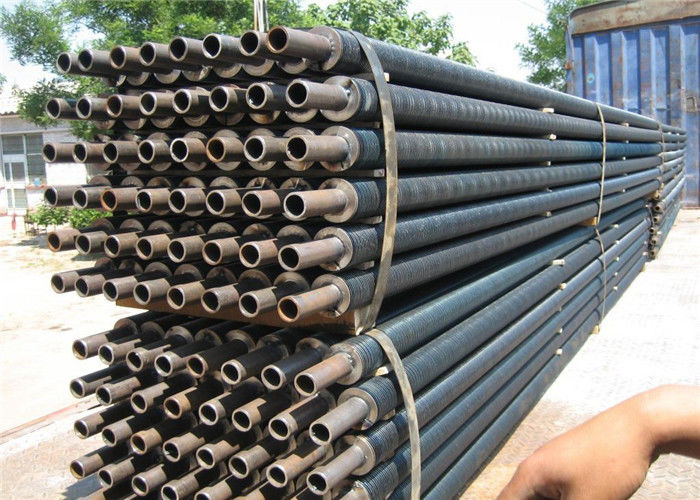

ASME Certificated Longitudinales Finned Tube For Heat Exchange Or Cooler Or Dryer



Product Introduction of Boiler Finned Tube

1) Tube OD:25mm~82.5mm

2) Length : 130mm~18m

3) fin height : 0mm-16mm

4) Fin pitch:2.0-5.0mm

5) finned tube length:0.5m~ 14m

6) Single metal rolling finned tube: Pure aluminum 1060 /aluminum alloy 6063 the 6061 material

7) Double metal rolling finned tube: Tube-based protection from the outer layer of aluminum tubes, corrosion-resistant;

8) Base tube material : carbon steel pipe/stainless steel tube/ copper tube / titanium alloy tube

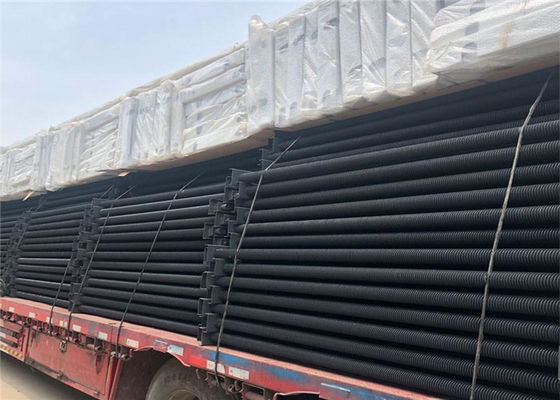

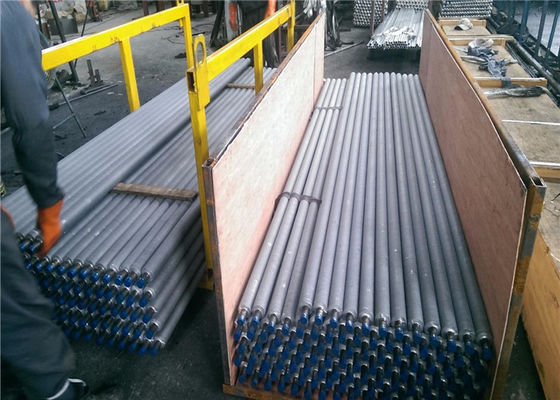

9) Package: The aluminum finned tubes are well packed in plastic film in the inner and steel frame in the outer




Specifications

1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.

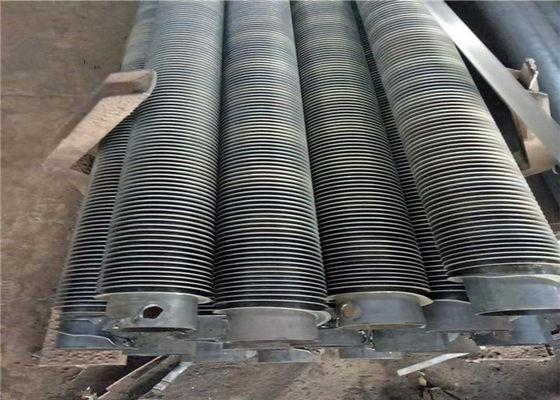

2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.


Company Profile

Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.


The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.

Location:

Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi. The traffic is very convenient.
