Product Details
| 製品名: | 炭素鋼の継ぎ目が無いボイラー管 | 適用: | 高く、中間、低圧のボイラーおよび圧力為に |
|---|---|---|---|
| 標準: | DIN17175 | 材料: | ST35.8 |
| ハイライト |
DIN17175ボイラー鋼鉄管,4本の肋骨はBoiler Steel Tubeに通す,DIN17175は糸Tubeに通した |
||
Product Description

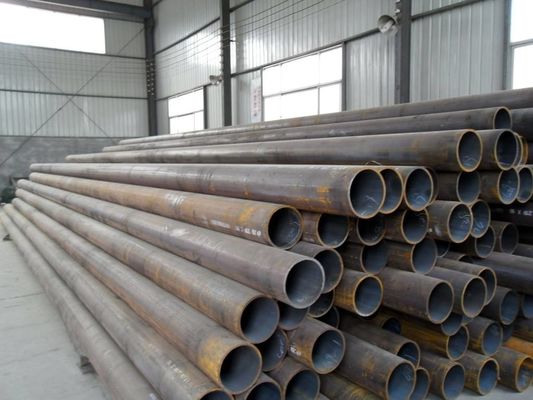

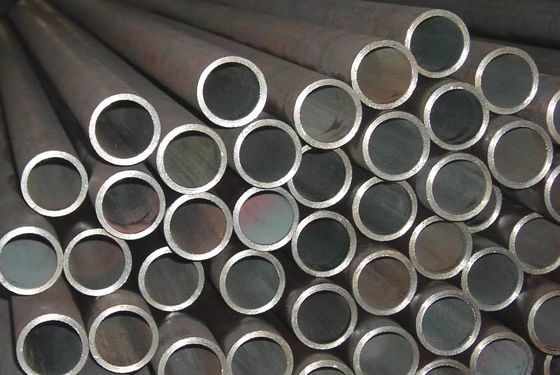

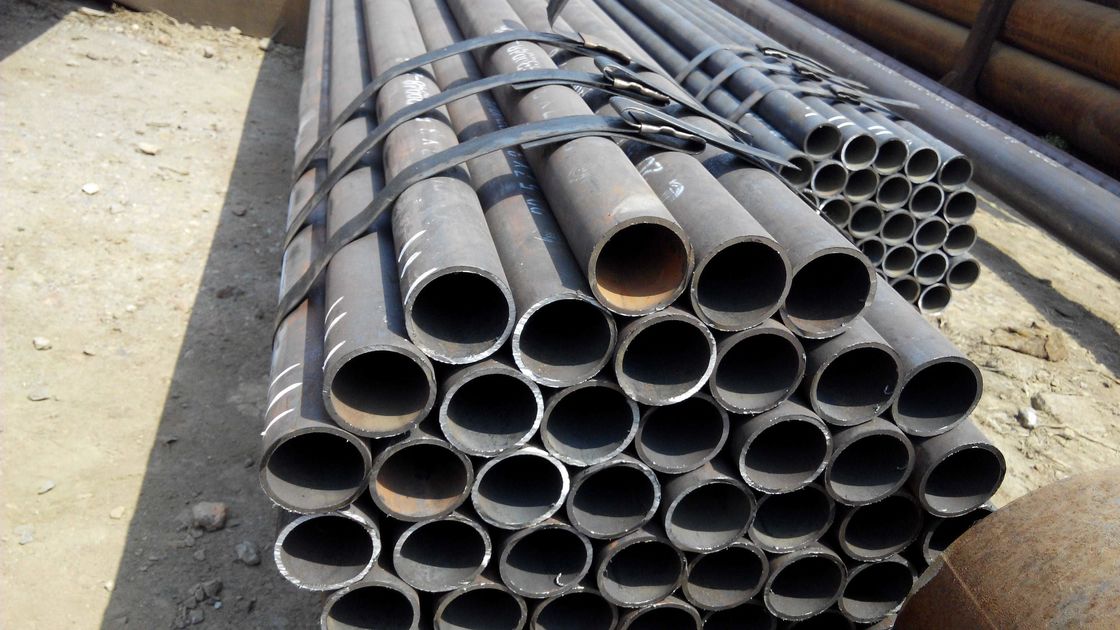

高圧継ぎ目が無い炭素鋼のボイラー管St 37.8の炭素鋼の管
生産標準:GB/T20409-2006
SteelGrade:20G、20MNG、25MNG、12CRMOG、15CRMOG、SA210A1、SA210C、SA213T2/T12、WB36、T91、T11、
P11、P22、P92、P5、P9、R102、CR5MO、16MO3,12CR2MOWVTIB
糸は番号が付いている: 4ribs/6ribs/8ribs/12ribs
Thread High pressureのボイラーRifledの内部管は1種類のendophragmプロセス螺線形ライン継ぎ目が無い鋼管である。容量の実用的なボイラーの水冷の壁の主要出願。通常使用が比較する蛍光灯によって、それは高熱の負荷作動条件の下で燃え尽きるためにこうして撮影の状態のebullitionを送ることを避ける防ぐ管を延ばす管の耐用年数を核ebullitionの状態を維持できる。
Chemical&Mechanical変数
| 等級 | C | Mn | Si | Cr | Mo | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| 等級 | T （MPa） | Y （MPa） | E （%） | 硬度 |
| 20G | 410~550 | 245 | ≥24 | --- |
| 20MnG | ≥415 | ≥240 | ≥22 | --- |
| 25MnG | ≥485 | ≥275 | ≥20 | --- |
| 12CrMoG | 410~560 | ≥205 | ≥21 | --- |
| 15CrMoG | 440~640 | ≥235 | ≥21 | --- |
| SA-210C | ≥415 | ≥255 | ≥30 | ≤143HBW |
| SA-210A1 | ≥485 | ≥275 | ≥30 | ≤179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥220 | ≥30 | ≤163HBW |
| Heat Exchangersのための管Sizes及びCondensers及びBoiler | |||||||||||
| 外径 | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| 壁Thickness mm | |||||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | インチ | 重量kg/m | |||||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Tubeの形態:まっすぐ及びU-bend及びFinned及び巻かれる | |||||||||||
| ステンレス鋼の管:A/SA213、A/SA249、A/SA268、A/SA269、A/SA789、EN10216-5、A/SA688、B/SB163、JIS-G3463、GOST9941-81。 | |||||||||||
| カーボン&Alloy鋼鉄管:A/SA178、A/SA179、A/SA192、A/SA209、A/SA210、A/SA213、A.SA214 |
|||||||||||
