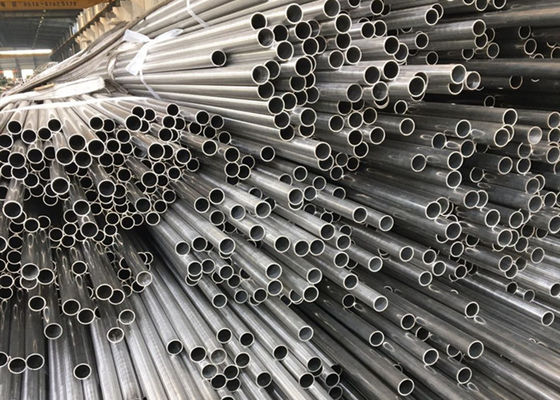

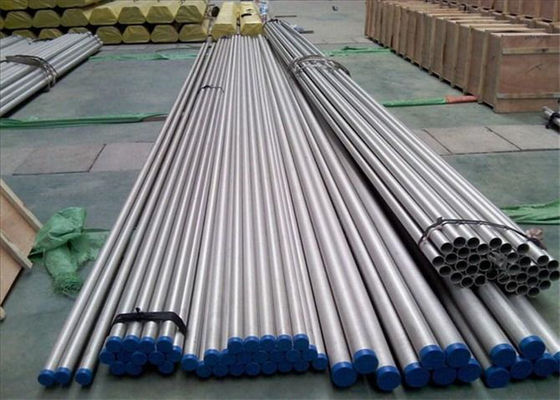

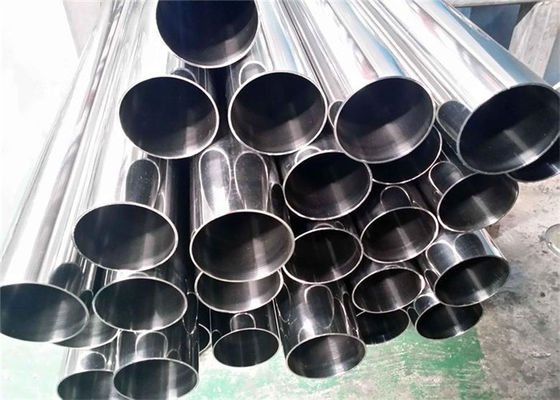

TP316L Bright Annealedのステンレス鋼の継ぎ目が無い管SCH160の厚さ
Product Details
| 標準: | ASTM、EN、ISO9001、TUV | 仕上げ: | アニールされる明るい |
|---|---|---|---|
| 適用: | Boiler&Heat交換体、エネルギー、食糧、ペーパー、ガスおよび流動企業 | 形: | 継ぎ目が無い円形 |
| OD: | OD:10"への1/8" | 厚さ: | SCH10-SCH160 |
| ハイライト |
明るいAnnealedのステンレス鋼の継ぎ目が無い管,SCH160ステンレス鋼の継ぎ目が無い管,SCH160継ぎ目が無いステンレス鋼の管 |
||
Product Description
TP316L Bright Annealed Seamless Stainless Tube腐食抵抗力がある76x6x6000mm
| 項目 | 記述 | |
| 基本情報 | 物質的な等級 | TP304、TP304L、TP304H、TP316、TP316L、TP316Ti、TP309S、TP310S、TP321、TP321H、TP347、TP347H、S31803、S32750、S32205等 |
| 外の直径 | 6.00mm - 48.00mm | |
| 壁厚さ | 0.71mm - 2.11mm | |
| 長さ | 普通固定長6m、顧客の要求による缶 | |
| 標準 | ASTM A213;ASTM A269;ASTM A312;ASTM A789;ASTM A790のect。 | |
| プロセス方法 | 冷たい-引き分けか冷た転がされる | |
ASME SA213/A213:Seamless FerriticおよびAusteniticの合金鋼Boiler、SuperheaterおよびStainless Steel Heat Exchanger Tubesのための標準的なSpecification。
ASTM A249/A249M:Welded Austenitic Steel Boiler、Superheater熱ExchangerおよびCondenser Tubesのための標準的なSpecification。
適用:
1 . 液体及びガスの輸送のため
2 . 石油化学製品
3 . 環境保護
4 . 構造及び機械化
5 . 電気
6 . 器械の企業等
| Stanardのワイヤ・ゲージ（Fomerlyの帝国ワイヤ・ゲージ） SWG | |||||
| SWG | 壁厚さ | SWG | 壁厚さ | ||
| 0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
| 1 | 0.3 | 7.62 | 22 | 0.028 | 0.71 |
| 2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
| 3 | 0.252 | 6.4 | 24 | 0.022 | 0.56 |
| 4 | 0.232 | 5.89 | 25 | 0.02 | 0.51 |
| 5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
| 6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
| 7 | 0.176 | 4.47 | 28 | 0.0148 | 0.38 |
| 8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
| 9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
| 10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
| 11 | 0.116 | 2.95 | 32 | 0.0108 | 0.27 |
| 12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
| 13 | 0.092 | 2.34 | 34 | 0.0092 | 0.23 |
| 14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
| 15 | 0.072 | 1.83 | 36 | 0.0076 | 0.19 |
| 16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
| 17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
| 18 | 0.048 | 1.22 | 39 | 0.0052 | 0.13 |
| 19 | 0.04 | 1.02 | 40 | 0.0048 | 0.12 |
| 20 | 0.036 | 0.91 | |||
EN10216-5標準的な化学成分:
| 鋼鉄等級 | C | Si | Mn | P | S | N | Cr | CU | Mo | Nb | NI | チタニウム | 他 | |
| 最高 | 最高 | 最高 | ||||||||||||
| 鋼鉄名前 | 鋼鉄数 | |||||||||||||
| X2CrNi19-11 | 1.4306 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 18.00 - 20.00 | - | - | - | 8.00 - 10.00 | - | - |
| X5CrNi18-10 | 1.4301 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.50 | - | - | - | 8.00 - 10.50 | - | - |
| X6CrNiTi18-10 | 1.4541 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 17.00 - 19.00 | - | - | - | 9.00 - 12.00 | 0.70への5xC | - |
| X6CrNiNb18-10 | 1.4550 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 17.00 - 19.00 | - | - | 1.00への10xC | 9.00 - 12.00 | - | - |
| X2CrNiMo17-12-2 | 1.4404 | 0.03 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X5CrNiMo17-12-2 | 1.4401 | 0.07 | ≤1 | ≤2 | 0.04 | 0.015 | ≤0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X6CrNiMoTi17-12-2 | 1.4571 | 0.08 | ≤1 | ≤2 | 0.04 | 0.015 | - | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.50 - 13.50 | 0.70への5xC | - |
ASTM A213/A213Mの標準的な化学成分:
| 要素 | 304L （wt %） S30403 | 304 （wt %） S30400 | 316L （wt %） S31603 | 316 （wt %） S31600 |
| （c）最高Carbon | 0.035 | 0.08 | 0.035 | 0.08 |
| （Mn）最高Manganese | 2 | 2 | 2 | 2 |
| （p）最高Phosphorus | 0.045 | 0.045 | 0.045 | 0.045 |
| （S）最高Sulfur | 0.03 | 0.03 | 0.03 | 0.03 |
| （Si）最高Silicon | 1 | 1 | 1 | 1 |
| （NI）ニッケル | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| （Crの）クロム | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| （Mo）モリブデン | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| （Fe）鉄 | Bal. | Bal. | Bal. | Bal. |
| （CUの）銅 | N/A | N/A | N/A | N/A |
| （n） Nitrogen | N/A | N/A | N/A | N/A |
ASTM A312/A312Mの標準的な化学成分:
| 要素 | 304L （wt %） | 316L （wt %） |
| （c）最高Carbon | 0.035 | 0.035 |
| （Mn）最高Manganese | 2 | 2 |
| （p）最高Phosphorus | 0.045 | 0.045 |
| （S）最高Sulfur | 0.03 | 0.03 |
| （Si）最高Silicon | 1 | 1 |
| （NI）ニッケル | 8.0 - 13.0 | 10.0 - 14.0 |
| （Crの）クロム | 18.0 - 20.0 | 16.0 - 18.0 |
| （Mo）モリブデン | N/A | 2.0 - 3.0 |
| （Fe）鉄 | Bal. | Bal. |
| （CUの）銅 | N/A | N/A |
| （n） Nitrogen | N/A | N/A |
