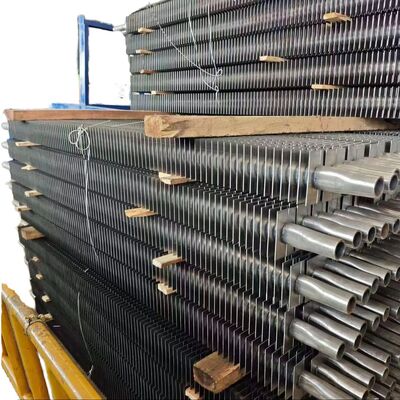

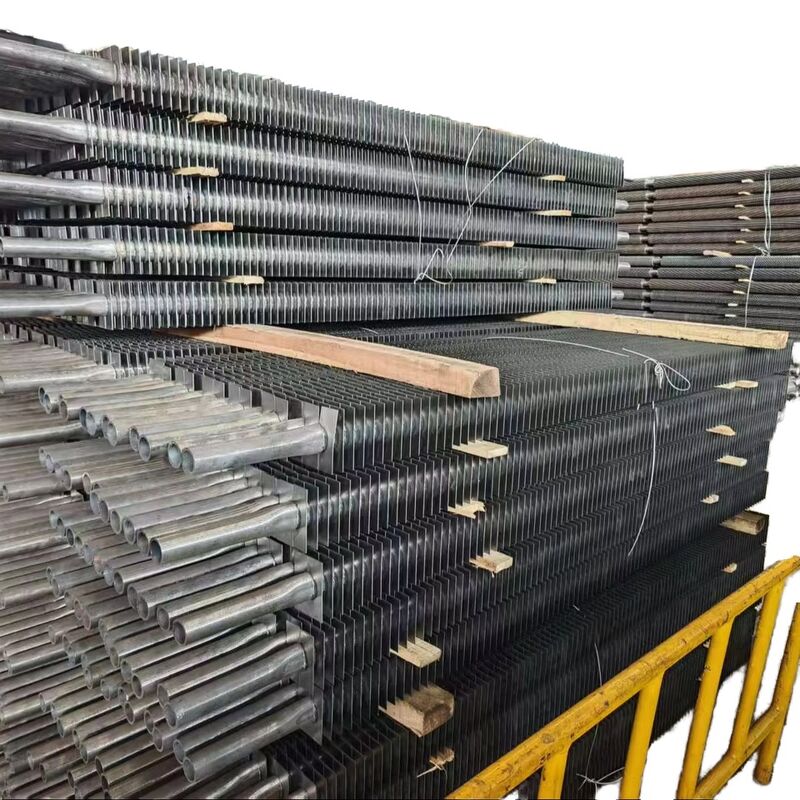

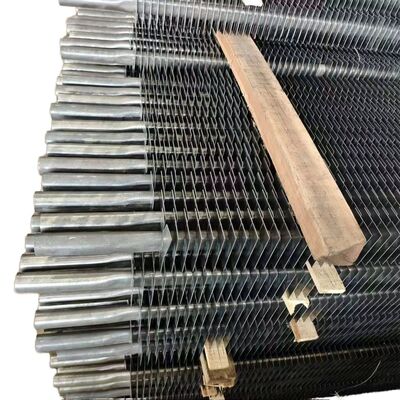

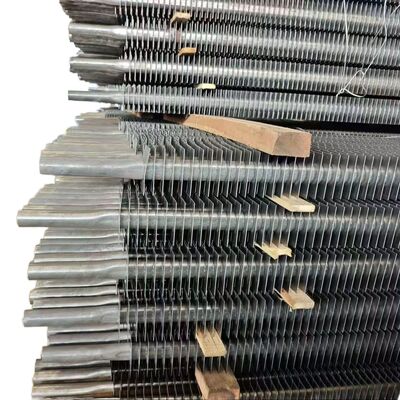

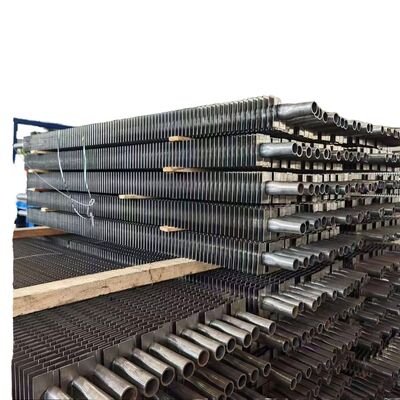

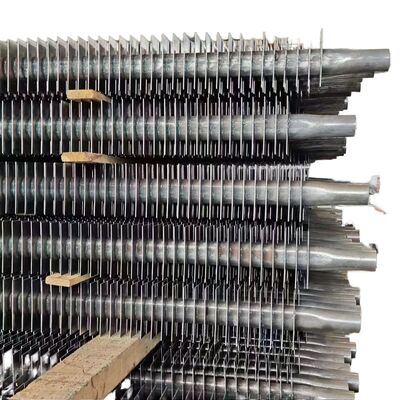

Customized HD Boiler Stainless Steel Fin Tubes
High efficiency, energy saving, high output industrial boiler fin tubes designed for optimal heat transfer performance.
Product Parameters
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|
| Range | 25.4 ~ 1600mm | 2.5 ~ 40 mm | 0.5 ~ 20.0 mm | 0.5 ~ 3.0 mm | 5 ~ 25.4 mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Length | 0 < L < 12000mm |
H-Fin Tube Specifications
| Product | H-fin Tube |
|---|
| Base Pipe | Welded or Seamless |
|---|
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
|---|
| Application | H economizer, H evaporator, H superheater, H air heater and related systems |
|---|
Boiler Economizer Introduction
Boiler economizers are advanced heat exchange devices with finned tubes that efficiently heat liquids up to, but not exceeding, their boiling points. We manufacture three types of boiler economizers:
- Bare tube economizer
- H finned tube economizer
- Spiral finned tube economizer
The H-finned tube economizer is a high-efficiency heat exchanger consisting of specialized H-finned tubes. Compared with bare tube economizers, H-finned tube economizers provide significant advantages:
- Enlarged heat exchange area with reduced number of tubes
- Increased flue gas flow area to reduce flow speed and abrasion
- Available as double H finned tubes with high rigidity for long tube rows
The spiral finned economizer represents newly designed heat transfer equipment that overcomes serious abrasion issues and extends service life.
Economizer Function
The primary function of the economizer is to "economize" or save on cooling costs by reducing compressor operation time while maintaining adequate cooling capacity, resulting in significant energy savings.
Boiler Economizer Specifications
| Description | Boiler economizer |
|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
|---|
| Material Standard | ASTM, EN or ISO etc. |
|---|
| Dimension | Customized to requirements |
|---|
| Weight | Minimum: 10 ton, Maximum: 1000 ton |
|---|
| Smelting Process | EF+LF+VD |
|---|
| Manufacturing Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
|---|
| UT Standard | ASTM A388 or EN10228, etc. |
|---|
Company Profile
Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components. We provide comprehensive services from design and manufacturing to installation and maintenance.
Quality Control
Our comprehensive quality control system includes:
- Impact test and strength calculation reports with applied materials information
- 100% NDT (non-destructive inspection) of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection of welding seams
- Hydraulic test reports to ensure standard working pressure and safety
We maintain a complete quality assurance and control system certified according to International Quality Standards, ensuring all products are manufactured in compliance with contract requirements, national regulations and standards through stringent inspection and testing.
Certifications
We hold the following verification certificates:
- ISO 9001: 2015
- CE Certificate
- EN ISO 3834-2
- ASME Certificate with "S", "U" and "NB" Stamps
Frequently Asked Questions
Q1: How long is the warranty period?
We provide 18 months warranty for all spare parts (excluding fragile parts).
Q2: How can we guarantee quality?
- All machines comply with ISO quality and CE system requirements
- Each procedure is crafted by professional skilled labor with dedicated QC
- All product information is tracked in our efficient management system
Q3: What products can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.
Q4: What services do you provide?
Before Sales: Product information, market research forecasting, product customization, product processing, consultation services.
After Sales:
- Technical training according to customer requirements
- Replacement under warranty
- Maintenance spare parts supply
- Regular customer callbacks and visits
- Prompt response to complaints and consultations
Delivery Terms: FOB, CFR, CIF, EXW, FCA
Payment Currency: USD, CNY
Payment Types: T/T, L/C, MoneyGram, Western Union, Cash
Languages: English, Chinese
Q5: Are you a factory or trading company, where are you located?
We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for customer visits.
